| Voltage | 115/230V |
|---|---|
| Frequency | 60/50Hz |
| Insulation | Class B |
| Power | 50W |
If want more detials or hope OEM, please contact us.
1.We purchase silicon steel then cut by high speed punch to form the lamination.
2. Produce gears by gear hobgbging machine, and produce shalft.
3.Perpare Windings: round the windings by winding mahcine.
4. Produce rotor:Cast rotor with aluminium.
5. Produce stator: Inseter windings to lamination by automic machine.
6. Assemble: assemble stator rotor and flange, shaft even reudcer box ( gear motor) etc. finish production of ac motor.
7. Inspection all fo the finished motor.
8. Package: After inspection, all of motor run well then packed by carton and pallets.

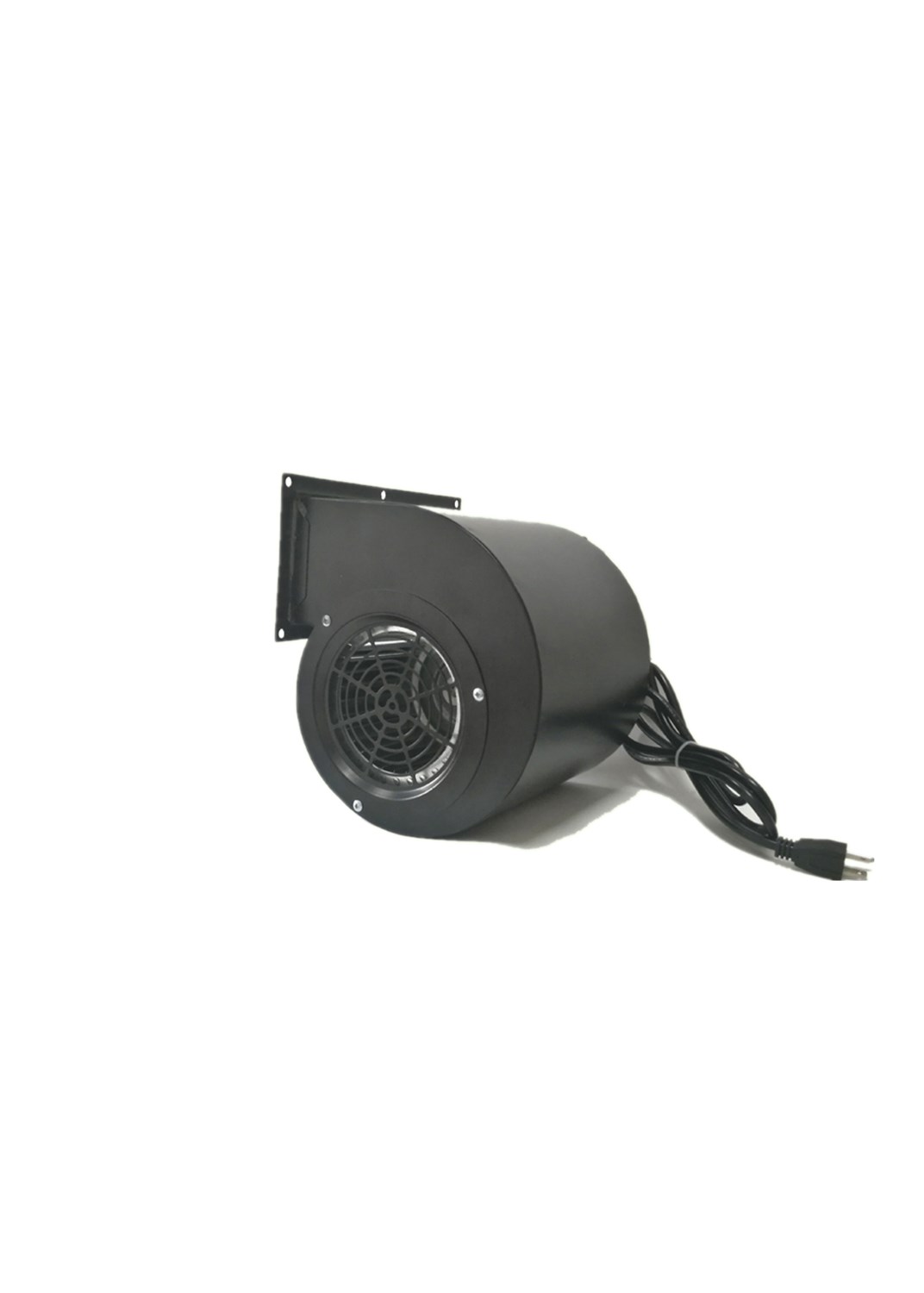

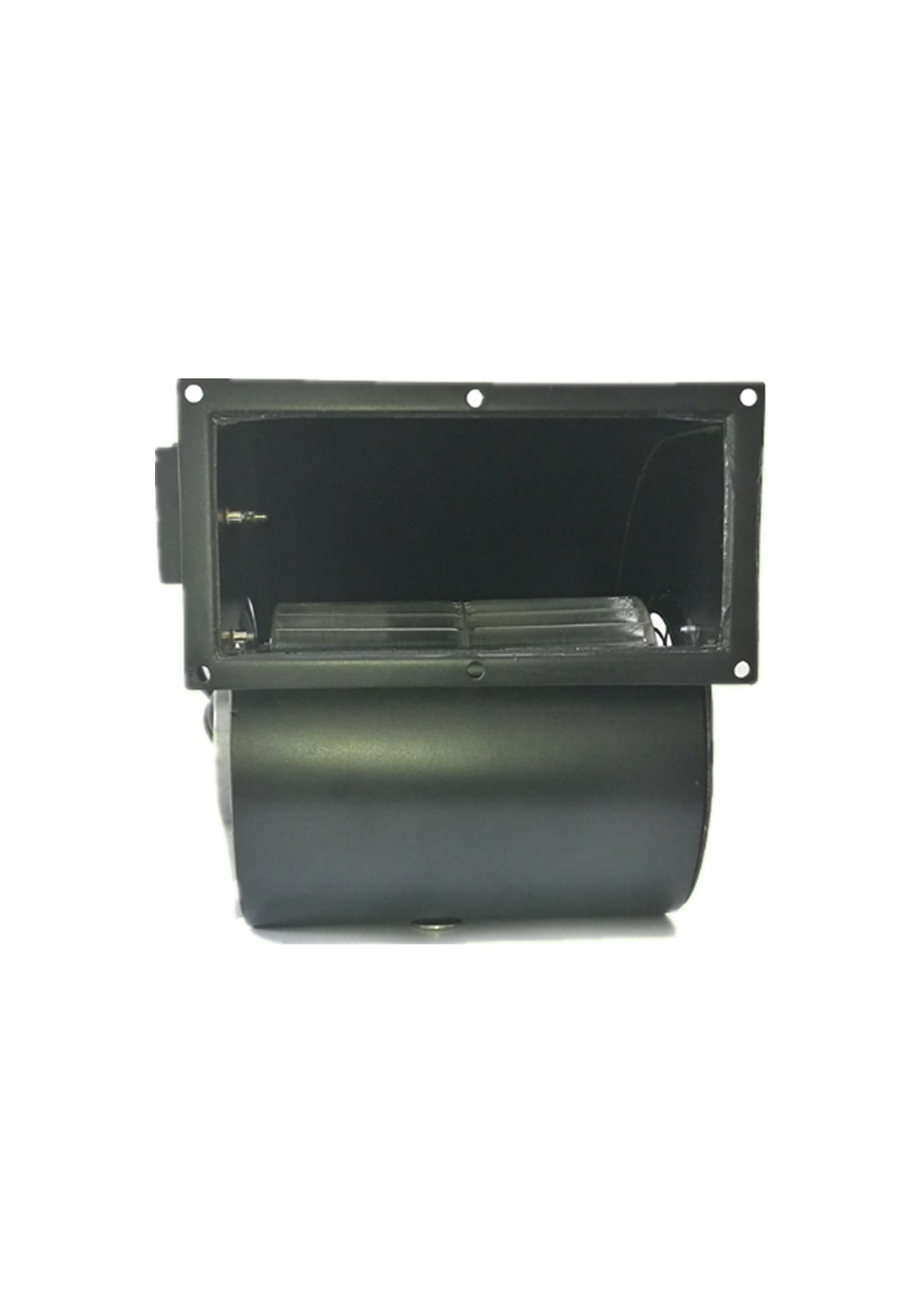

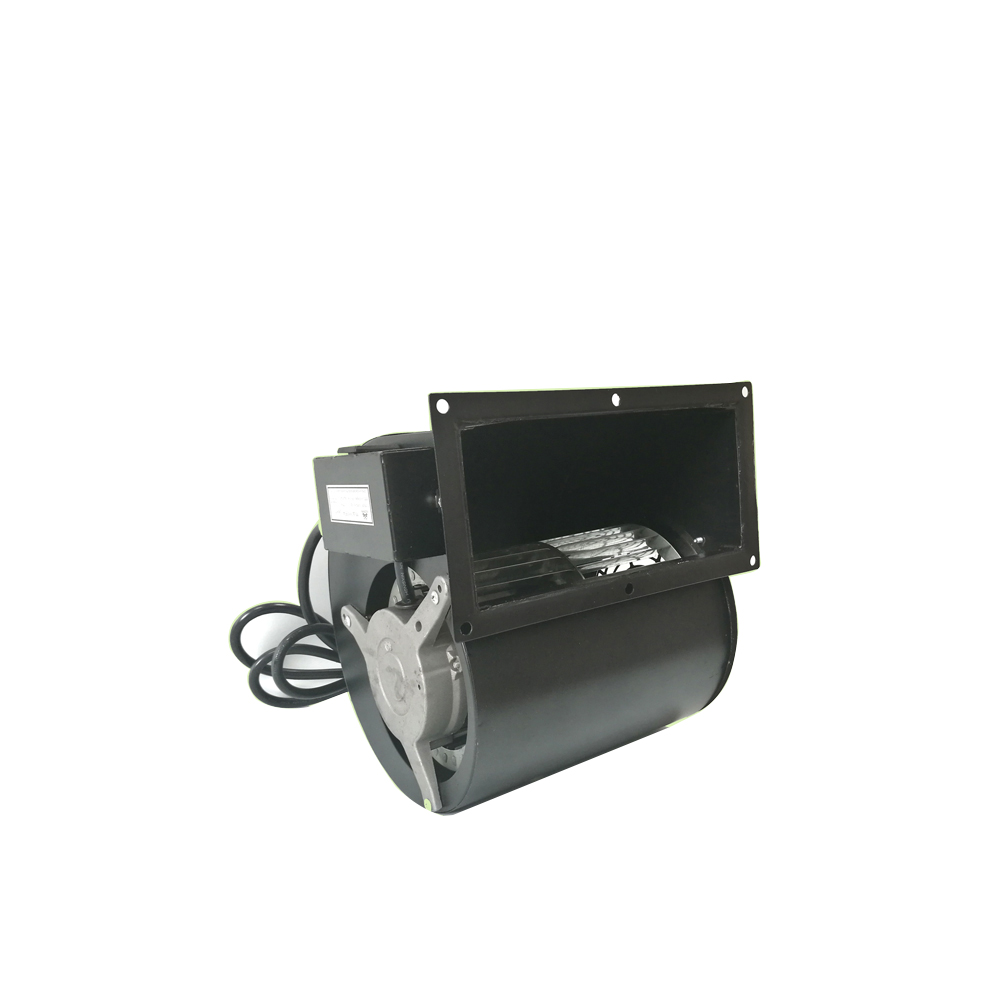

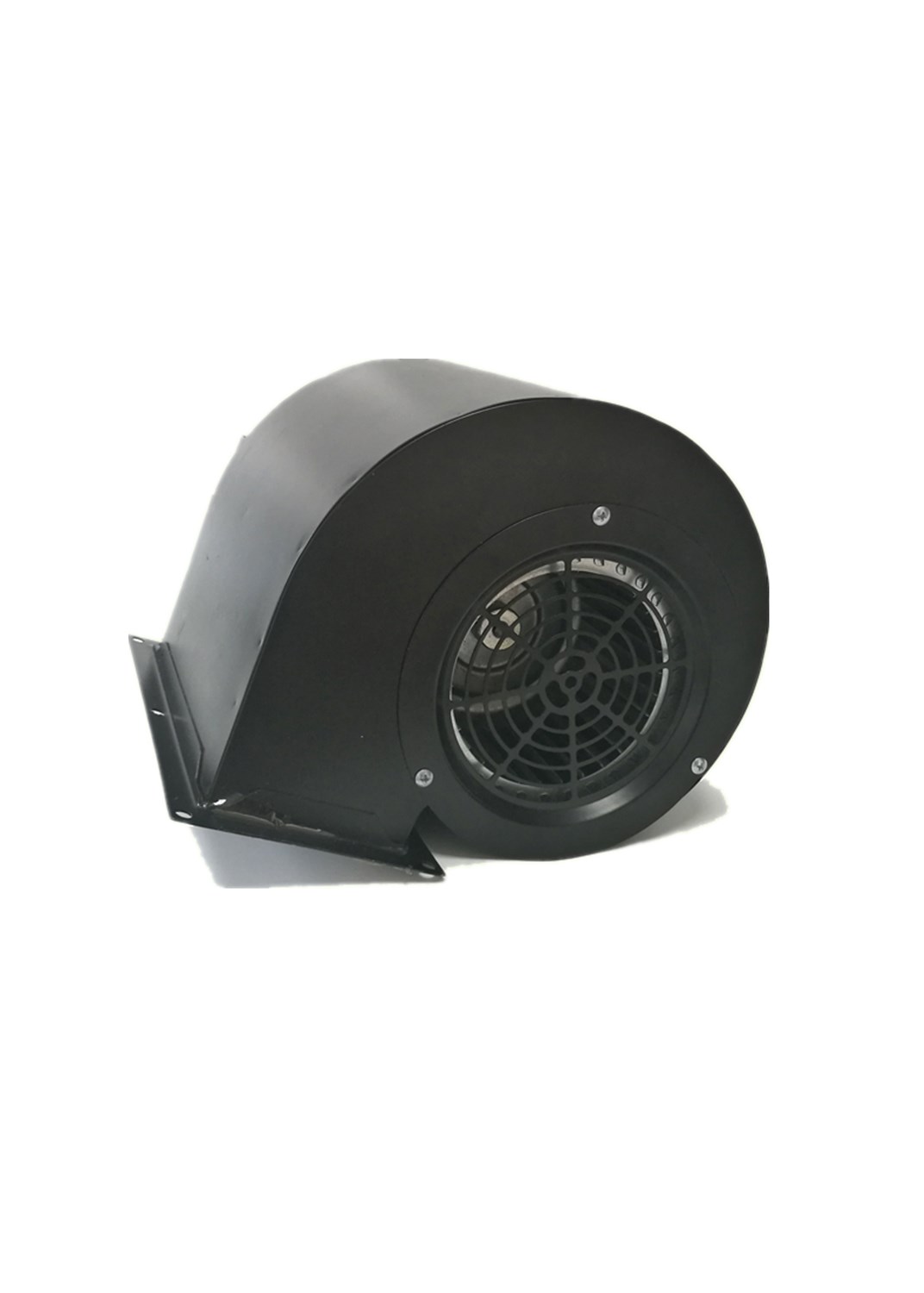

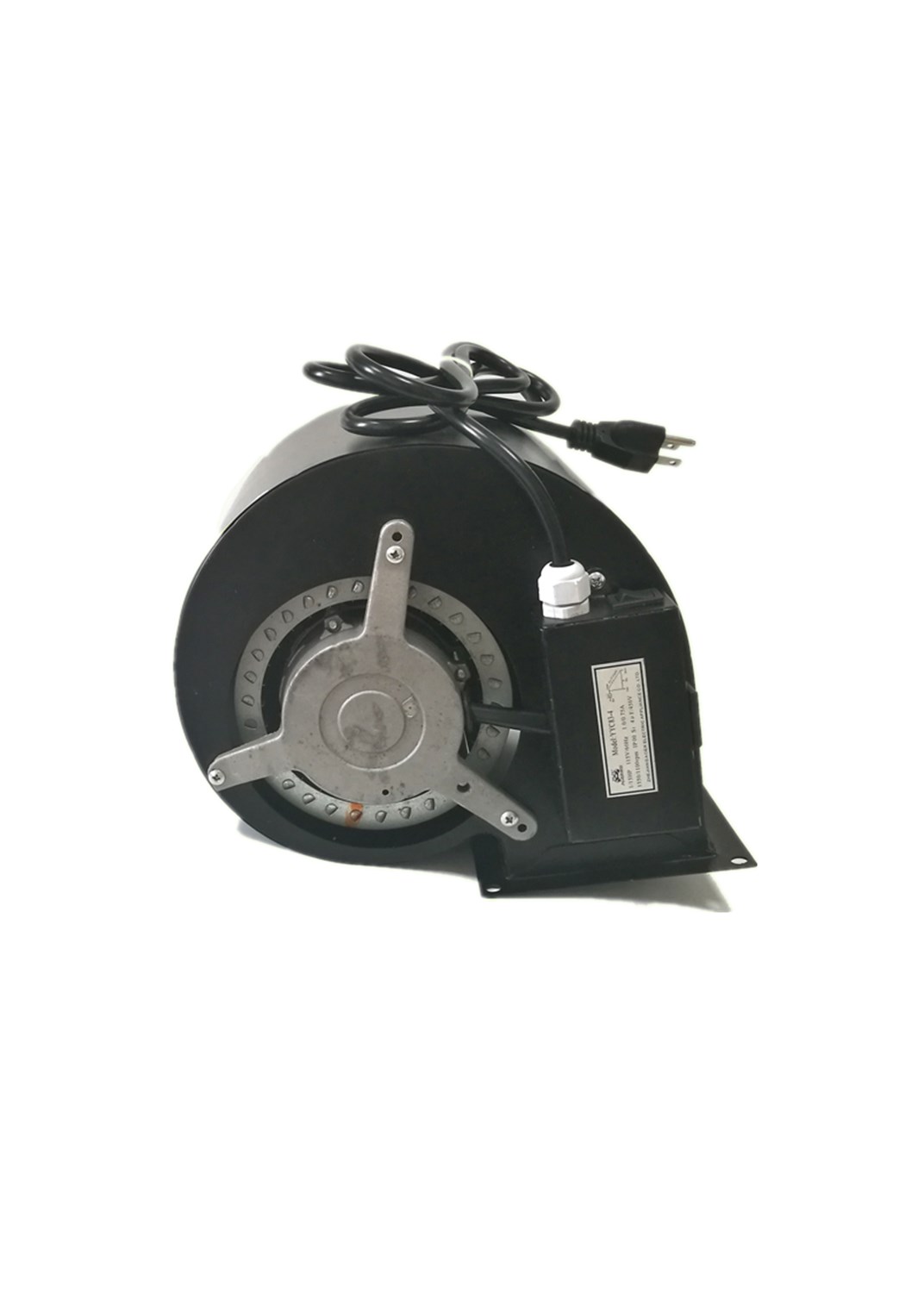

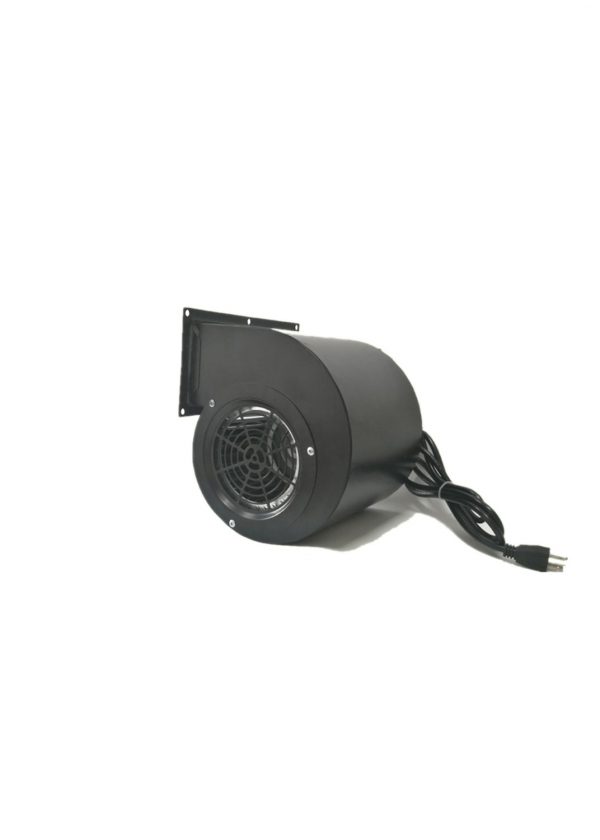

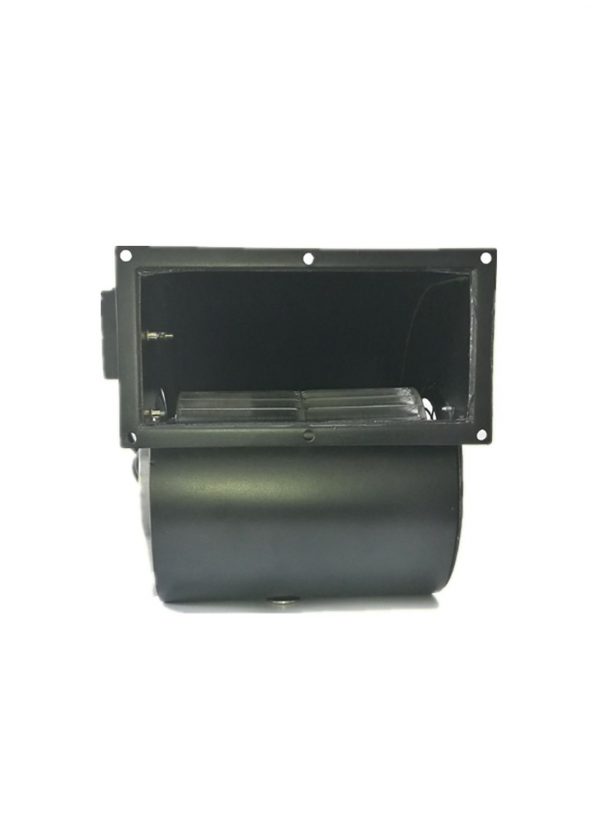

AC 220V50Hz/115V 60Hz 50W centrifugla blower use in range hood or ventialtion blower machine or range hood exhaust fan. The fan speed 1550/1100RPM, wind speed :4-11m/s. Air Volume 200-1500m3/h. We can produce it OEM or according with your requirements design. It export to South Amercia and USA, Europe and Asia etc. Enjoy good repuation by it’s good quality and reasonalbe price.

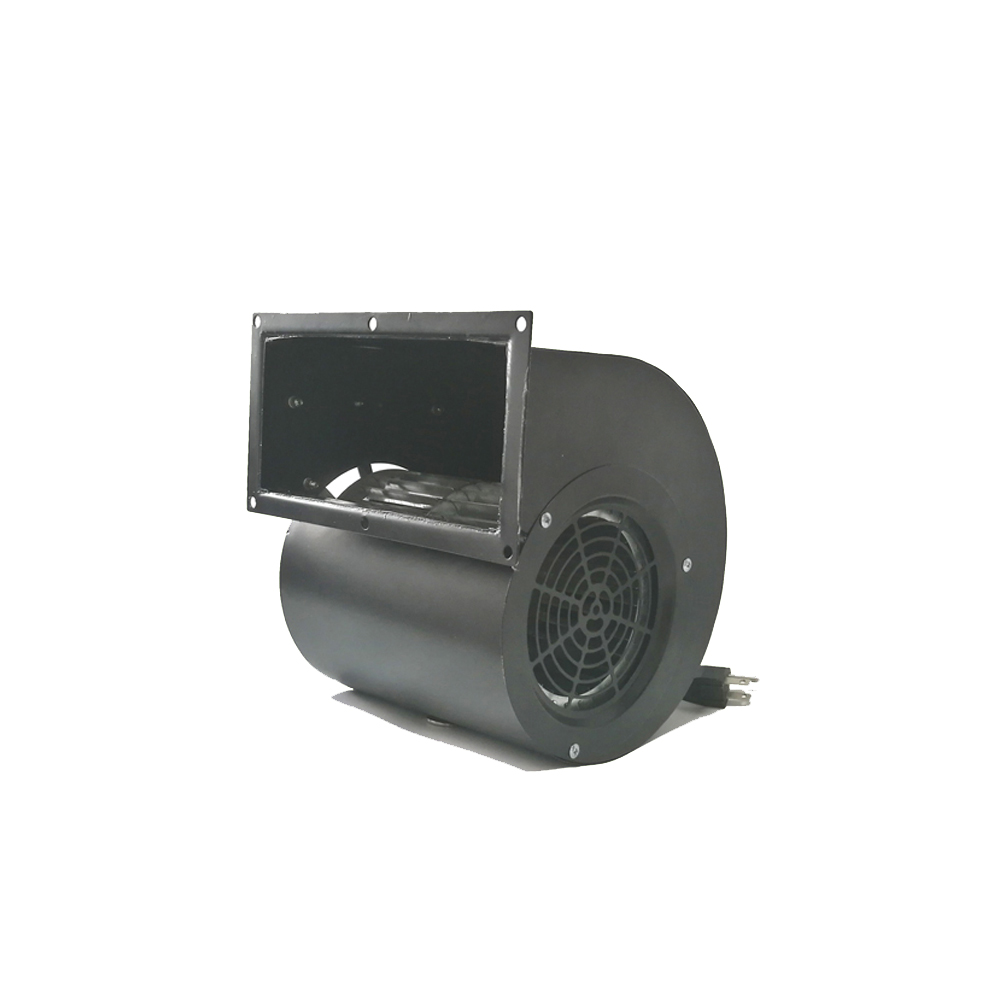

| Model Number： | YYC83-4 | ||
| Type： | centrifugal blower | ||
| Phase: | 1 phase | ||
| Insulation Class: | Class B | ||
| Rated Voltage: | 220V/115V(can be customized ) | ||
| Frequency | 50Hz/60Hz(can be customized ) | ||
| Input Power | 50W(1/15HP) | ||
| Current: | 1.0/0.75A | ||
| Bearing： | ball | ||
| Speed： | 1550/1100RPM,4-11m/s | ||
| Air Volumn | 200-1500m3/h | ||
| Capacitor | 4uF/450V | ||
| Pole： | 4 | ||
| Protection class IP | IP00 | ||
| Work Condition: | S1 | ||
| Application | range hood exhaust fan | ||
| Certification: | CSA | ||
| Weight | 3.55kg | ||
